2 Beyond ggplot2 Fundamentals

Author

Nguyen Kim Hau

Published

April 21, 2026

Modified

April 30, 2026

2.1 Purpose

Using several ggplot2 extensions for creating more elegant and effective statistical graphics:

  • Control the placement of annotation on a graph by using functions provided in ggrepel package.
  • Create professional publication quality figure by using functions provided in ggthemes and hrbrthemes packages.
  • Plot composite figure by combining ggplot2 graphs by using patchwork package.

Source: https://r4va.netlify.app/chap02

2.2 Getting started

2.2.1 Installing and loading the required libraries

Beside tidyverse, four R packages will be used:

  • ggrepel: an R package provides geoms for ggplot2 to repel overlapping text labels.
  • ggthemes: an R package provides some extra themes, geoms, and scales for ‘ggplot2’.
  • hrbrthemes: an R package provides typography-centric themes and theme components for ggplot2.
  • patchwork: an R package for preparing composite figure created using ggplot2.

Code chunk below will be used to check if these packages have been installed and also will load them onto your working R environment.

pacman::p_load(ggrepel,
               patchwork,
               ggthemes,
               hrbrthemes,
               tidyverse,
               psych,
               ggplot,
               extrafont
               )

2.2.2 Importing data

The code chunk below imports exam_data.csv into R environment by using read_csv() function of readr package. readr is one of the tidyverse package.

exam_data <- read_csv("data/Exam_data.csv")
head(exam_data, n = 10)
# A tibble: 10 × 7
   ID         CLASS GENDER RACE    ENGLISH MATHS SCIENCE
   <chr>      <chr> <chr>  <chr>     <dbl> <dbl>   <dbl>
 1 Student321 3I    Male   Malay        21     9      15
 2 Student305 3I    Female Malay        24    22      16
 3 Student289 3H    Male   Chinese      26    16      16
 4 Student227 3F    Male   Chinese      27    77      31
 5 Student318 3I    Male   Malay        27    11      25
 6 Student306 3I    Female Malay        31    16      16
 7 Student313 3I    Male   Chinese      31    21      25
 8 Student316 3I    Male   Malay        31    18      27
 9 Student312 3I    Male   Malay        33    19      15
10 Student297 3H    Male   Indian       34    49      37

2.2.3 Statistics

Show some statistics about this data.

There are a total of seven attributes in the exam_data tibble data frame. Four of them are categorical data type and the other three are in continuous data type.

The categorical attributes are: ID, CLASS, GENDER and RACE. The continuous attributes are: MATHS, ENGLISH and SCIENCE.

library(psych)
describe(exam_data)
        vars   n   mean    sd median trimmed    mad min max range  skew
ID*        1 322 161.50 93.10  161.5  161.50 119.35   1 322   321  0.00
CLASS*     2 322   4.71  2.49    5.0    4.68   2.97   1   9     8  0.09
GENDER*    3 322   1.47  0.50    1.0    1.47   0.00   1   2     1  0.11
RACE*      4 322   1.79  1.00    1.0    1.71   0.00   1   4     3  0.59
ENGLISH    5 322  67.18 14.69   70.0   68.50  13.34  21  96    75 -0.77
MATHS      6 322  69.33 19.98   74.0   71.61  17.79   9  99    90 -0.93
SCIENCE    7 322  61.16 18.18   65.0   62.50  17.79  15  96    81 -0.60
        kurtosis   se
ID*        -1.21 5.19
CLASS*     -1.17 0.14
GENDER*    -1.99 0.03
RACE*      -1.41 0.06
ENGLISH     0.18 0.82
MATHS       0.17 1.11
SCIENCE    -0.35 1.01

2.3 Beyond ggplot2

2.3.1 Annotation: ggrepel

ggrepel is an extension of ggplot2 package which provides geoms for ggplot2 to repel overlapping text as in our examples on the right.

We simply replace geom_text() by geom_text_repel() and geom_label() by geom_label_repel.

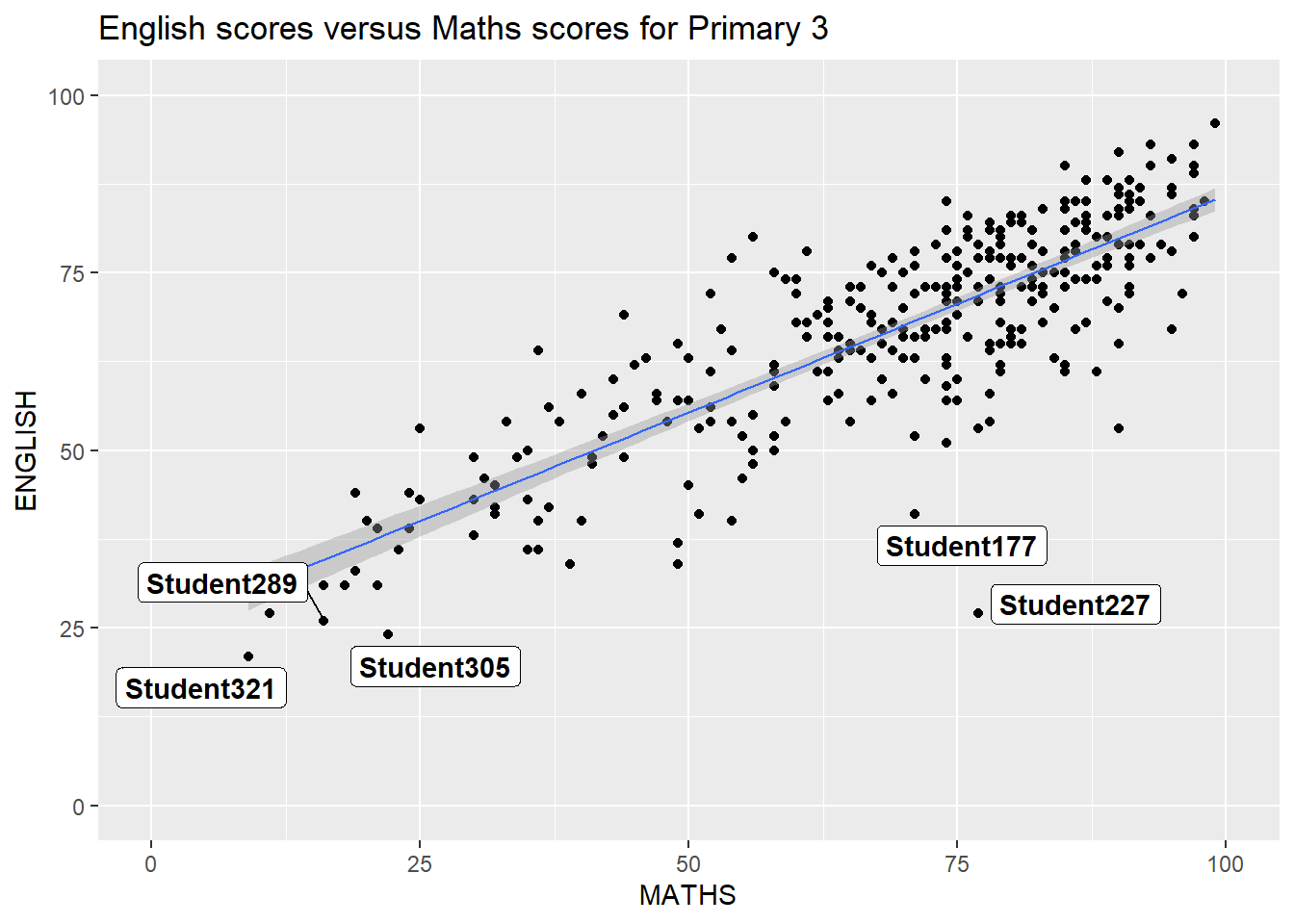

ggplot(data=exam_data,
       aes(x= MATHS,
           y=ENGLISH)) +
  geom_point() +
  geom_smooth(method=lm,
              size=0.5) +
  geom_label_repel(aes(label = ID),
                   fontface = "bold") +
  coord_cartesian(xlim=c(0,100),
                  ylim=c(0,100)) +
  ggtitle("English scores versus Maths scores for Primary 3")

2.4 Beyond ggplot2 Themes

p1 <- ggplot(data=exam_data,
             aes(x = MATHS)) +
  geom_histogram(bins=20,
                 boundary = 100,
                 color="grey25",
                 fill="grey90") +
  ggtitle("Distribution of Maths scores")

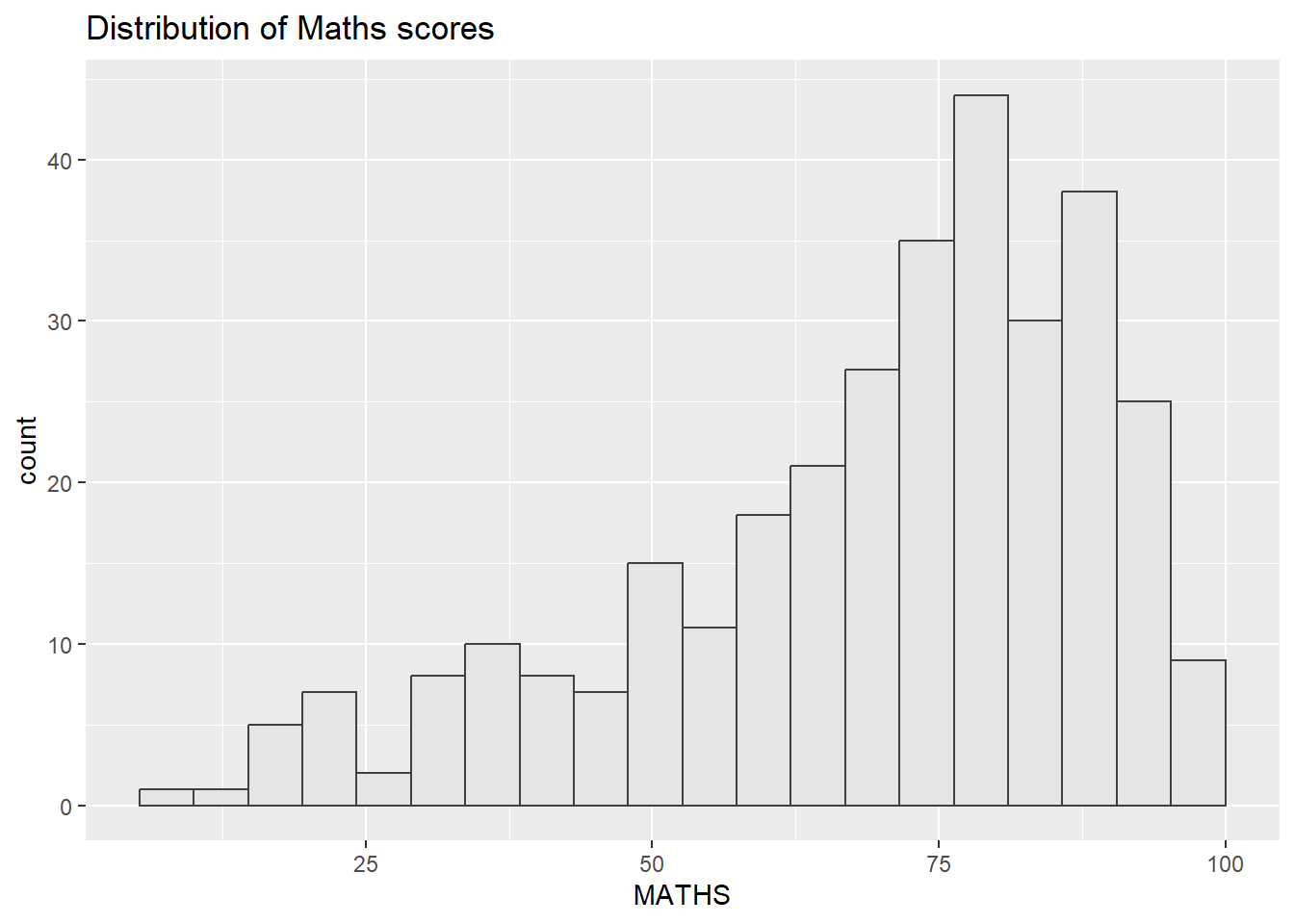

p1

2.4.1 Working with ggtheme package

ggthemes provides ‘ggplot2’ themes that replicate the look of plots by Edward Tufte, Stephen Few, Fivethirtyeight, The Economist, ‘Stata’, ‘Excel’, and The Wall Street Journal, among others.

The Economist theme:

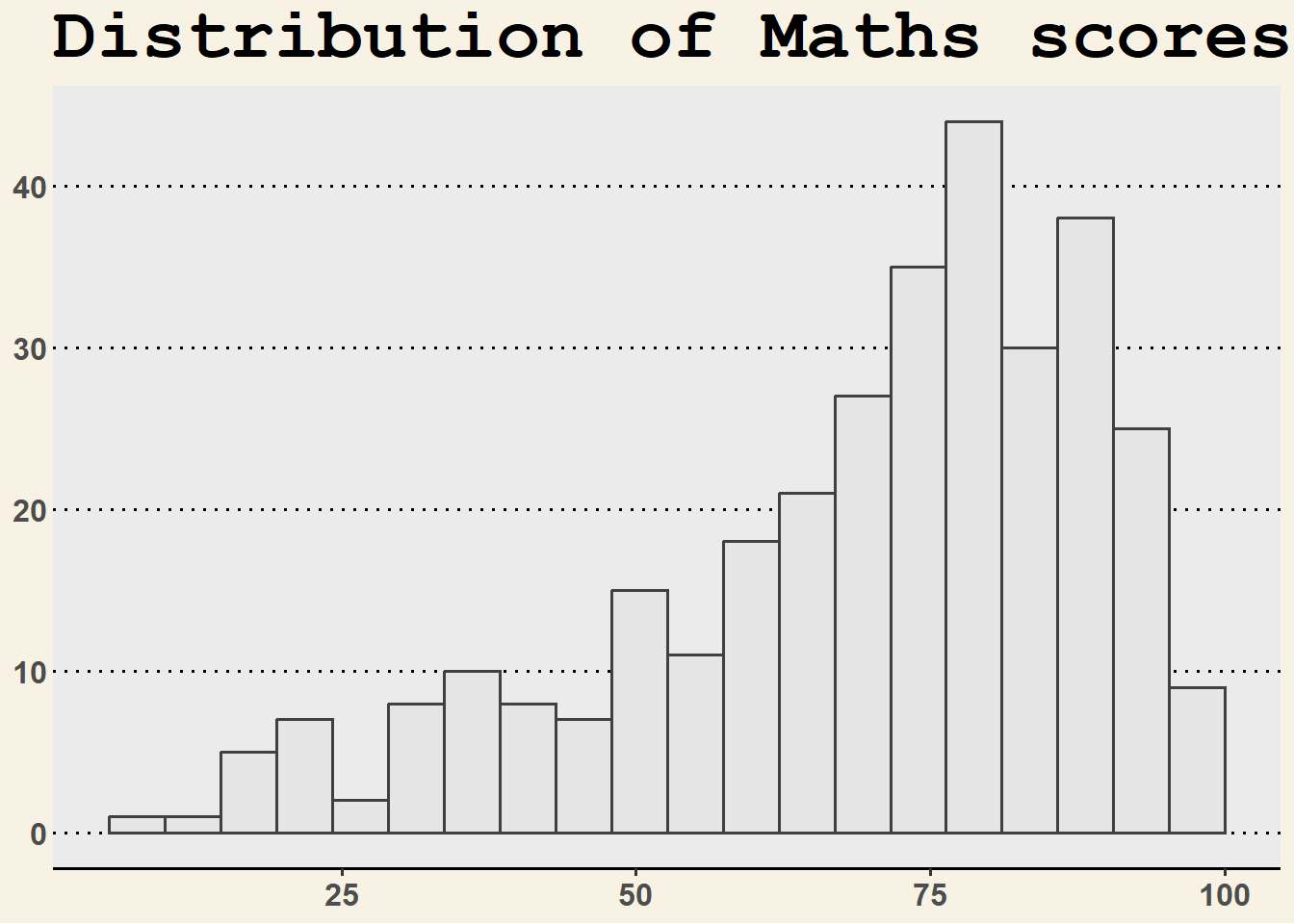

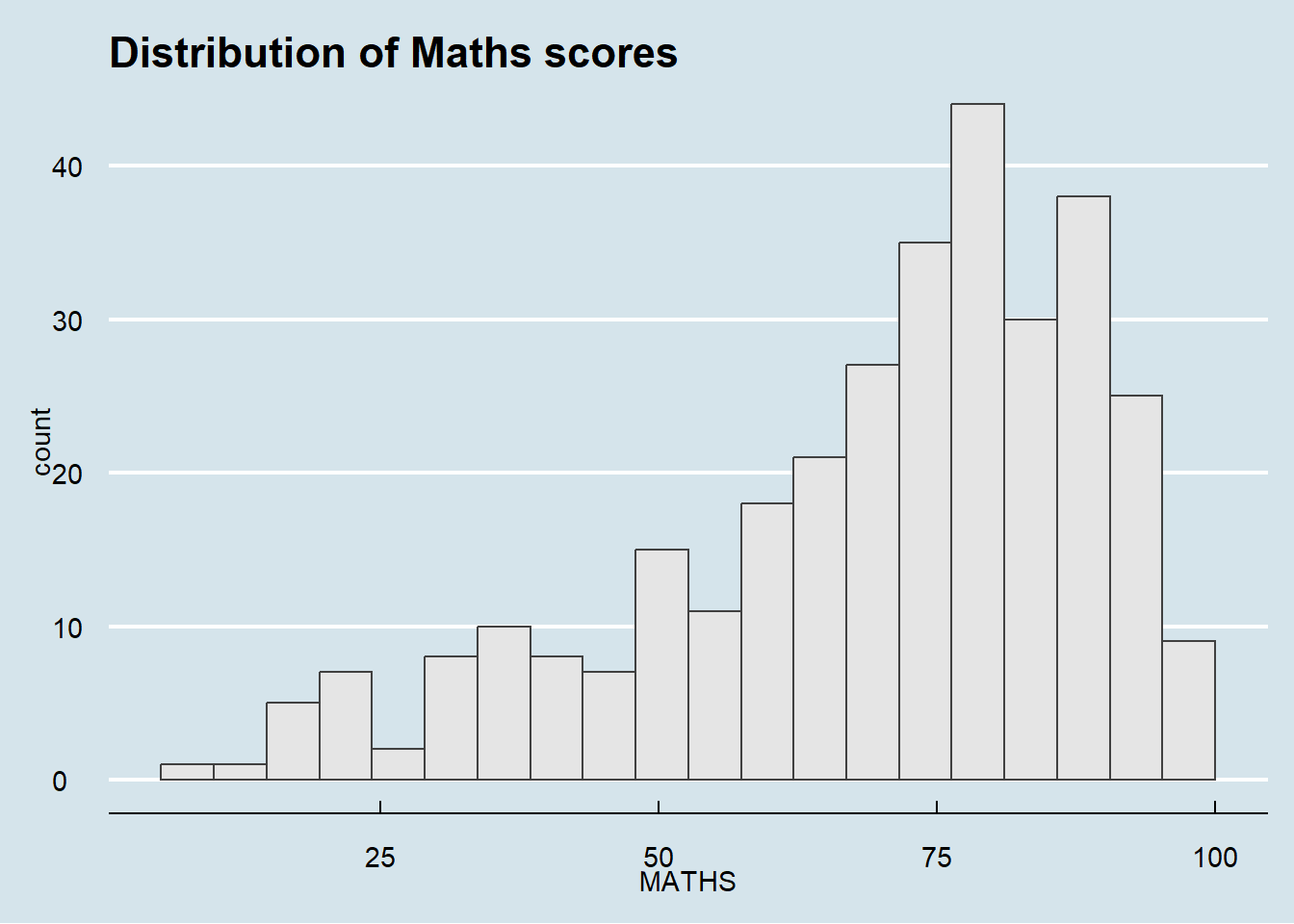

p1 + theme_economist()

The Wall Street Journal theme:

p1 & theme_wsj() & theme(plot.margin = margin(5, 5, 5, 5))

Other ggthemes can be explorered here.

2.4.2 Working with hrbtheme package

hrbrthemes package provides a base theme that focuses on typographic elements, including where various labels are placed as well as the fonts that are used.

Install fonts to use theme_ipsum()

install.packages("extrafont")
library(extrafont)
font_import()
loadfonts(device = "win")
p2 <- ggplot(data=exam_data,
             aes(x = MATHS)) +
  geom_histogram(bins=20,
                 boundary = 100,
                 color="grey25",
                 fill="grey90") +
  ggtitle("Distribution of Maths scores")

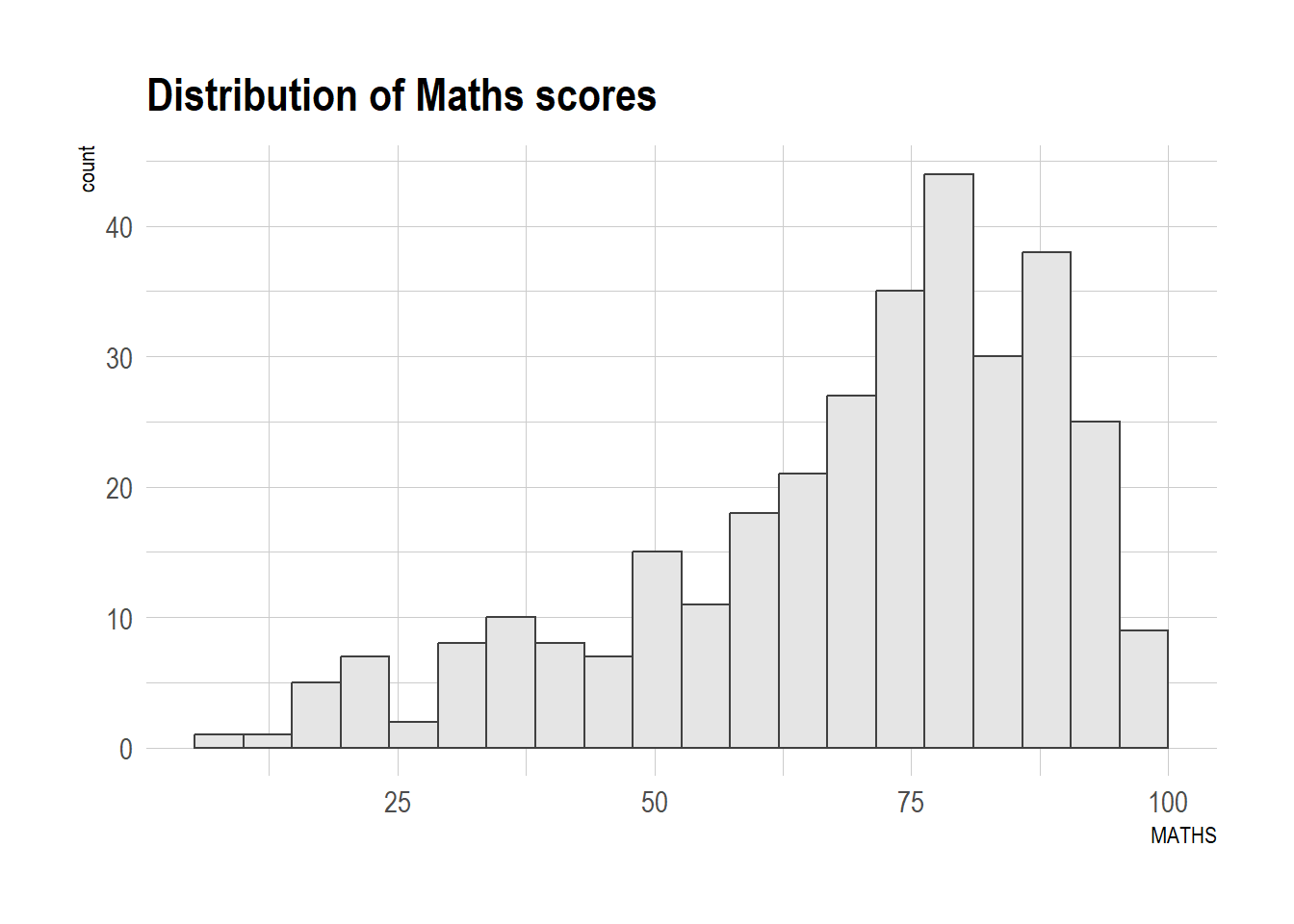

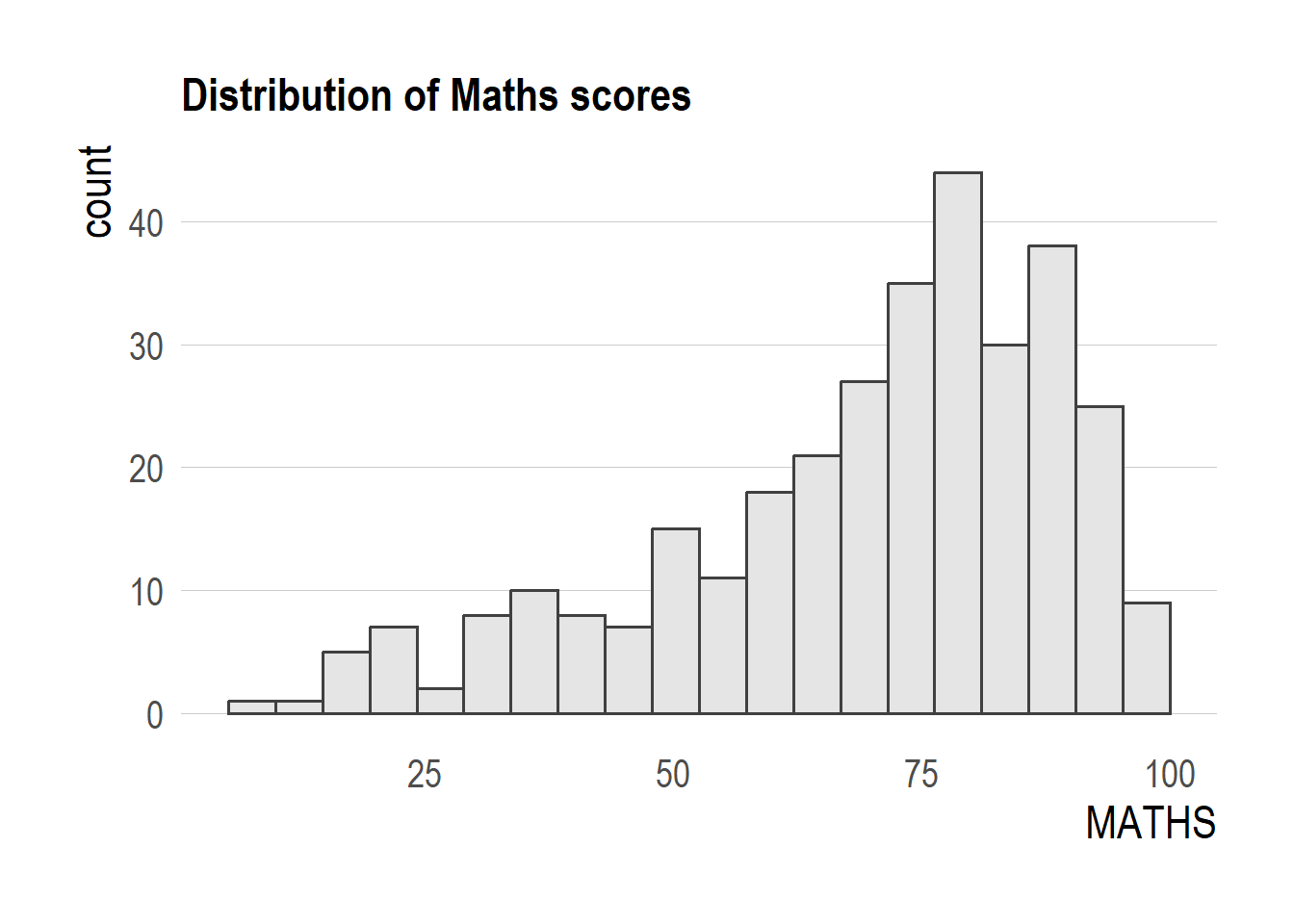

p2 + theme_ipsum()

p2 +
  theme_ipsum(axis_title_size = 18,
              base_size = 15,
              grid = "Y")

TipWhat we modify above?
  • axis_title_size argument is used to increase the font size of the axis title to 18,
  • base_size argument is used to increase the default axis label to 15, and
  • grid argument is used to remove the x-axis grid lines.

2.5 Beyond Single Graph

Create single charts.

p1 <- ggplot(data=exam_data,
             aes(x = MATHS)) +
  geom_histogram(bins=20,
                 boundary = 100,
                 color="grey25",
                 fill="grey90") +
  coord_cartesian(xlim=c(0,100)) +
  ggtitle("Distribution of Maths scores")
p2 <- ggplot(data=exam_data,
             aes(x = ENGLISH)) +
  geom_histogram(bins=20,
                 boundary = 100,
                 color="grey25",
                 fill="grey90") +
  coord_cartesian(xlim=c(0,100)) +
  ggtitle("Distribution of English scores")
p3 <- ggplot(data=exam_data,
             aes(x= MATHS,
                 y=ENGLISH)) +
  geom_point() +
  geom_smooth(method=lm,
              linewidth=0.5) +
  coord_cartesian(xlim=c(0,100),
                  ylim=c(0,100)) +
  ggtitle("English scores versus Maths scores")

2.5.1 Creating Composite Graphics: pathwork methods

In this case, we use an ggplot2 extension called patchwork which is specially designed for combining separate ggplot2 graphs into a single figure. Patchwork package has a very simple syntax where we can create layouts super easily. Here’s the general syntax that combines:

  • Two-Column Layout using the Plus Sign +.
  • Parenthesis () to create a subplot group.
  • Two-Row Layout using the Division Sign /

2.5.2 Combining multiple ggplot2 graphs

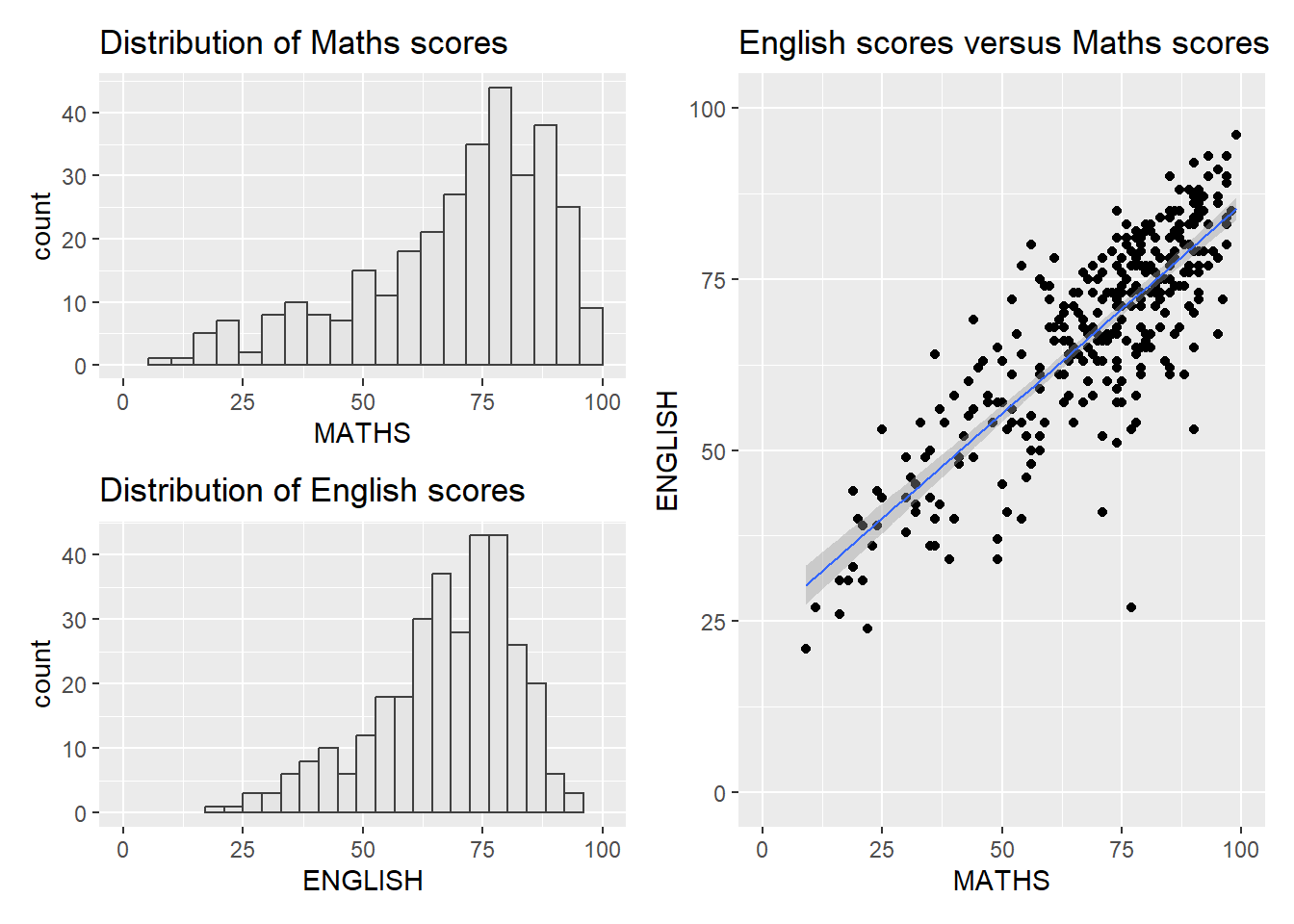

(p1 / p2) | p3

2.5.3 Creating a composite figure with tag

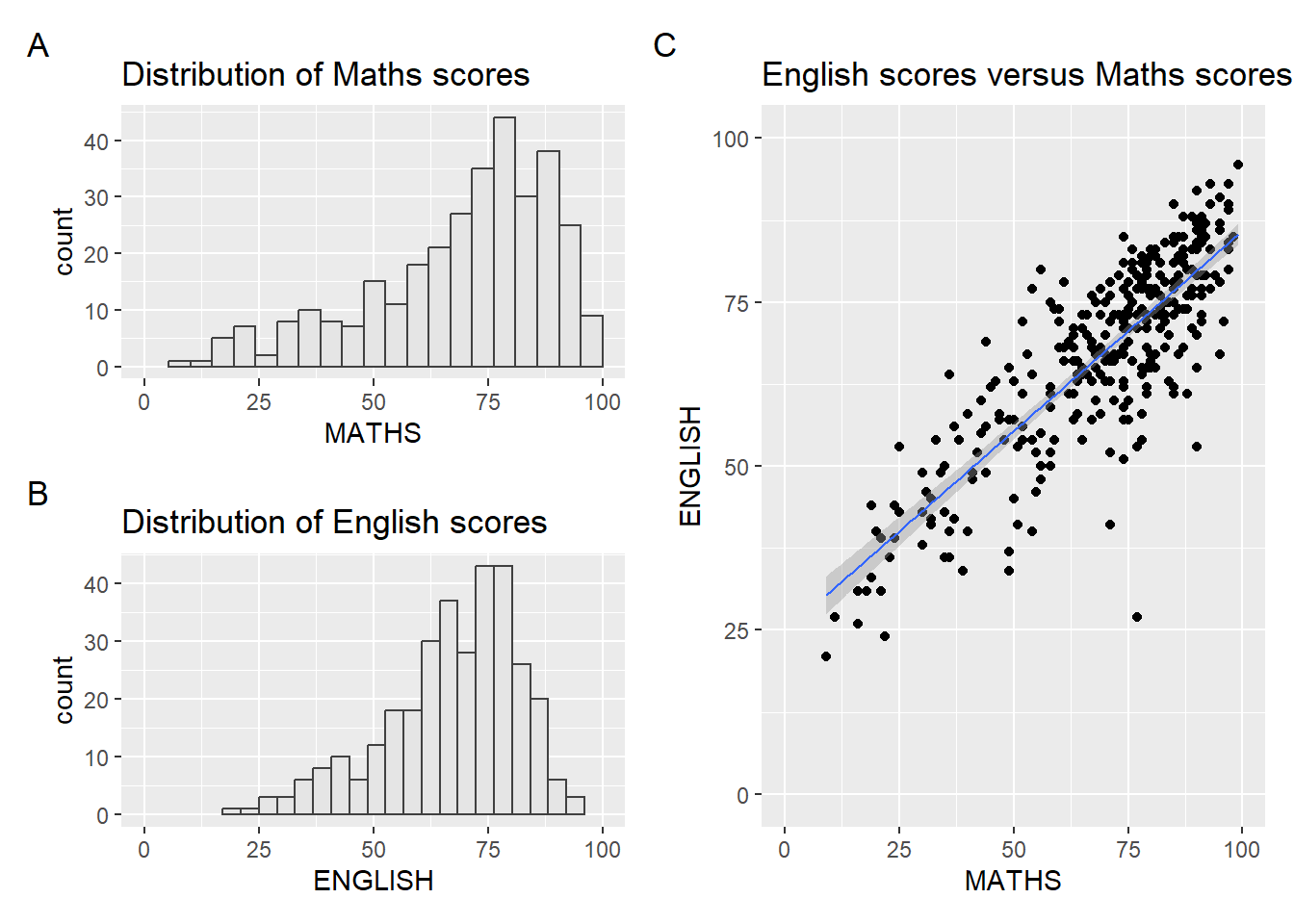

((p1 / p2) | p3) +
  plot_annotation(tag_levels = 'A')

2.5.4 Creating a composite figure by using patchwork and ggtheme

patchwork <- (p1 / p2) | p3

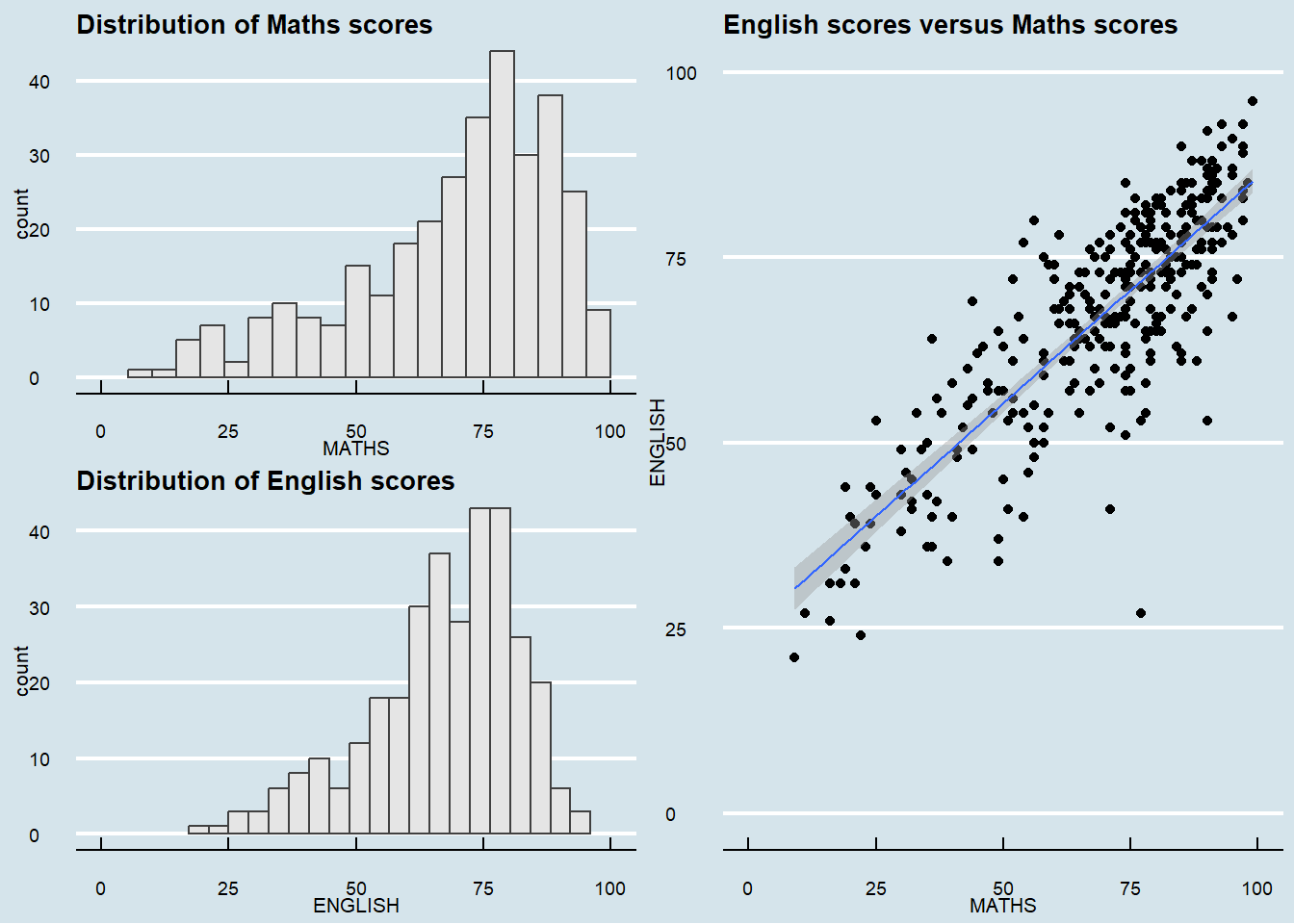

patchwork & theme_economist() &
    theme(
    plot.title = element_text(size = 10, face = "bold"),
    axis.title = element_text(size = 8),
    axis.text = element_text(size = 7),
    plot.margin = margin(2, 2, 2, 2, "pt")
    )
